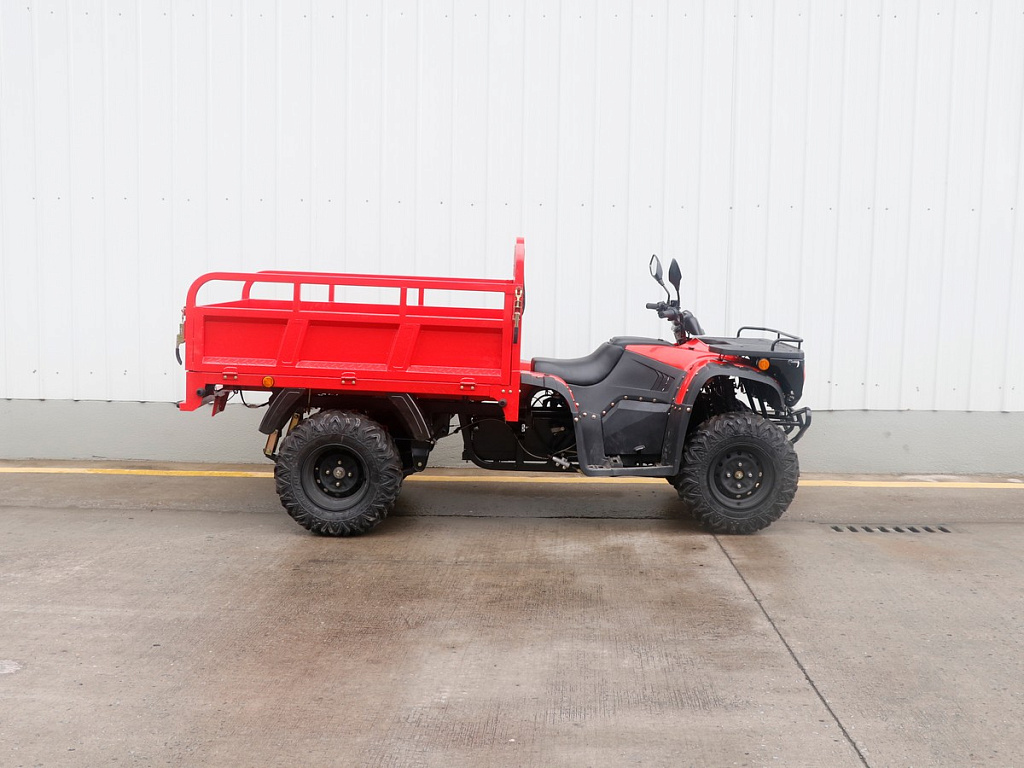

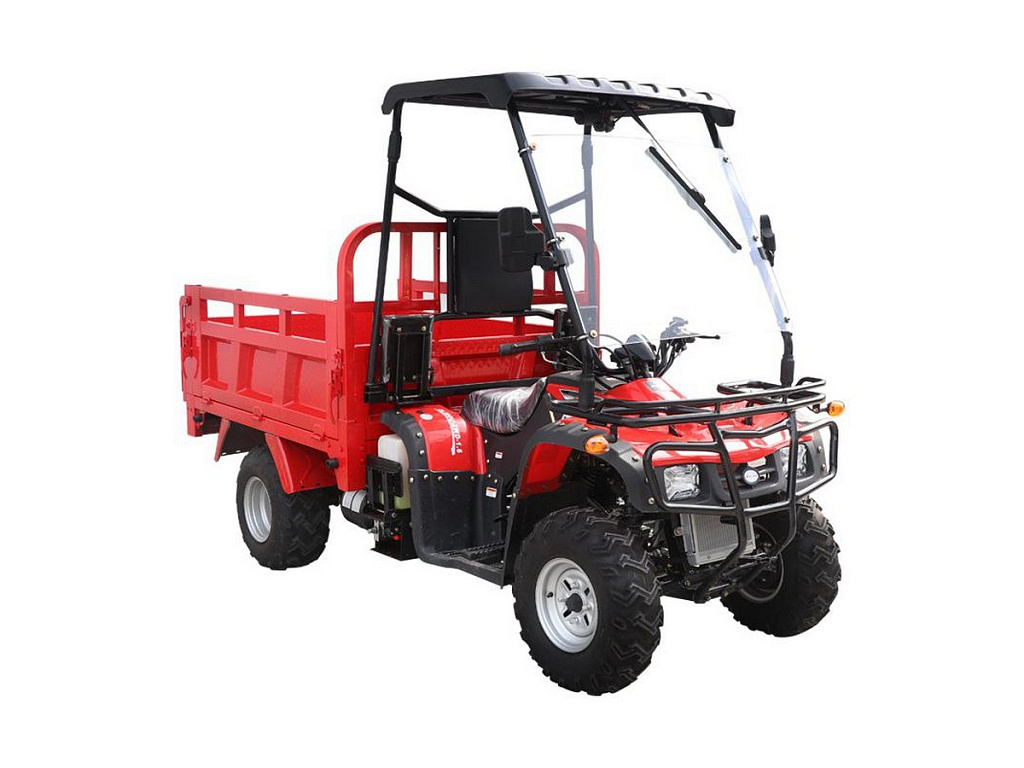

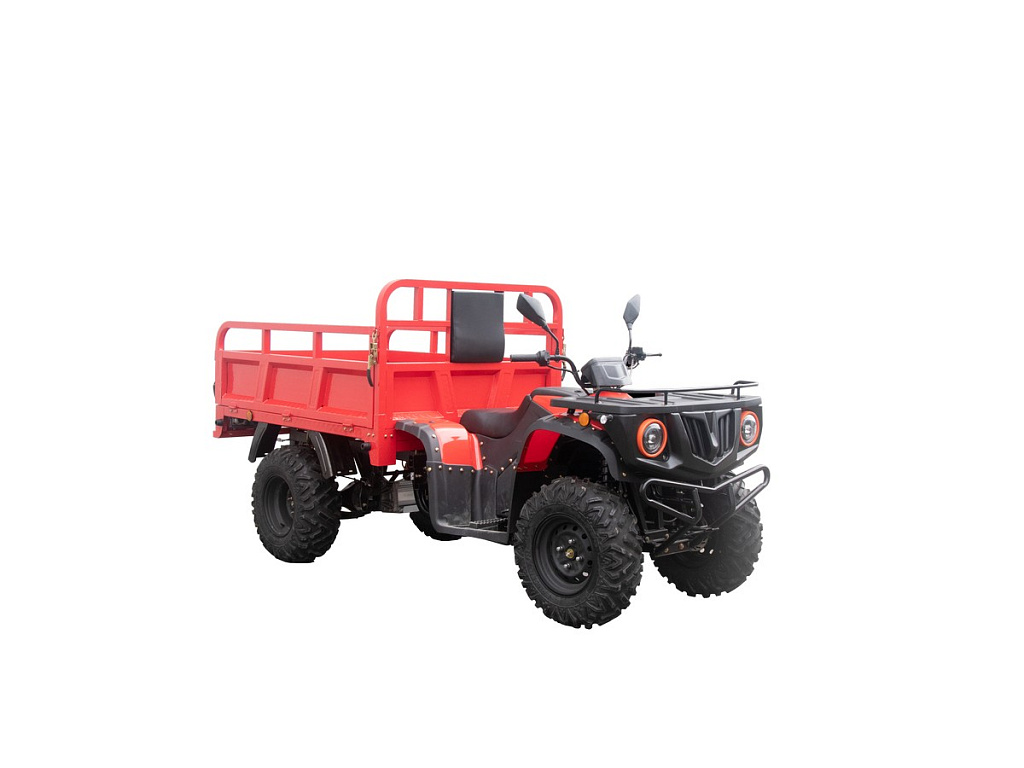

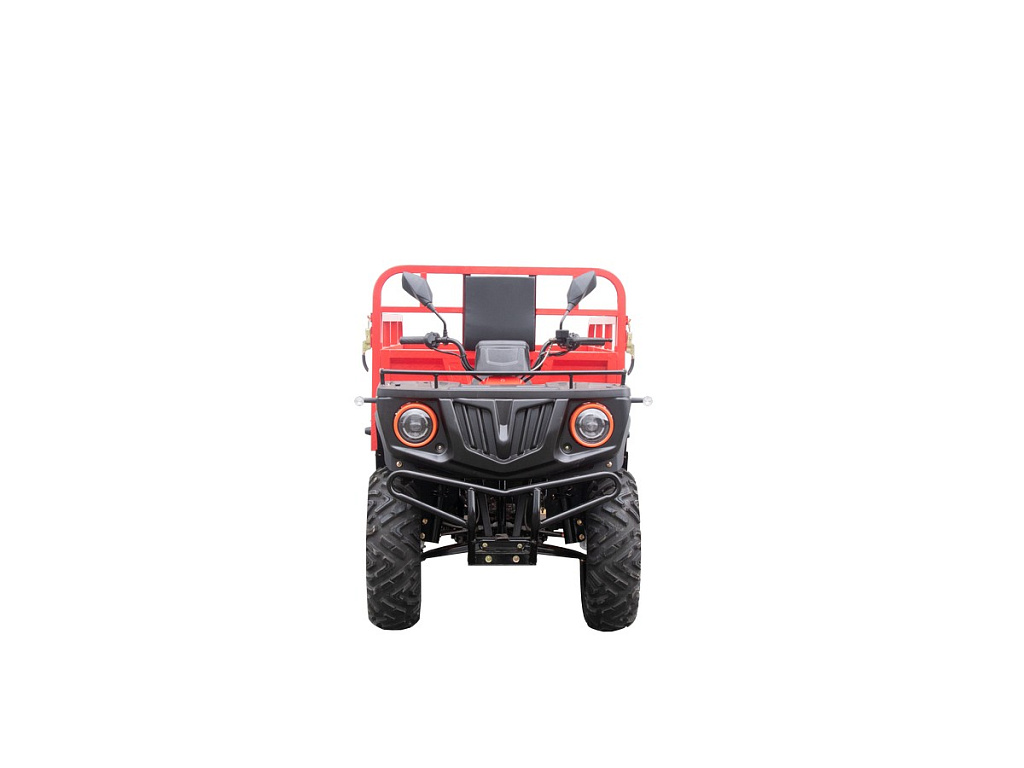

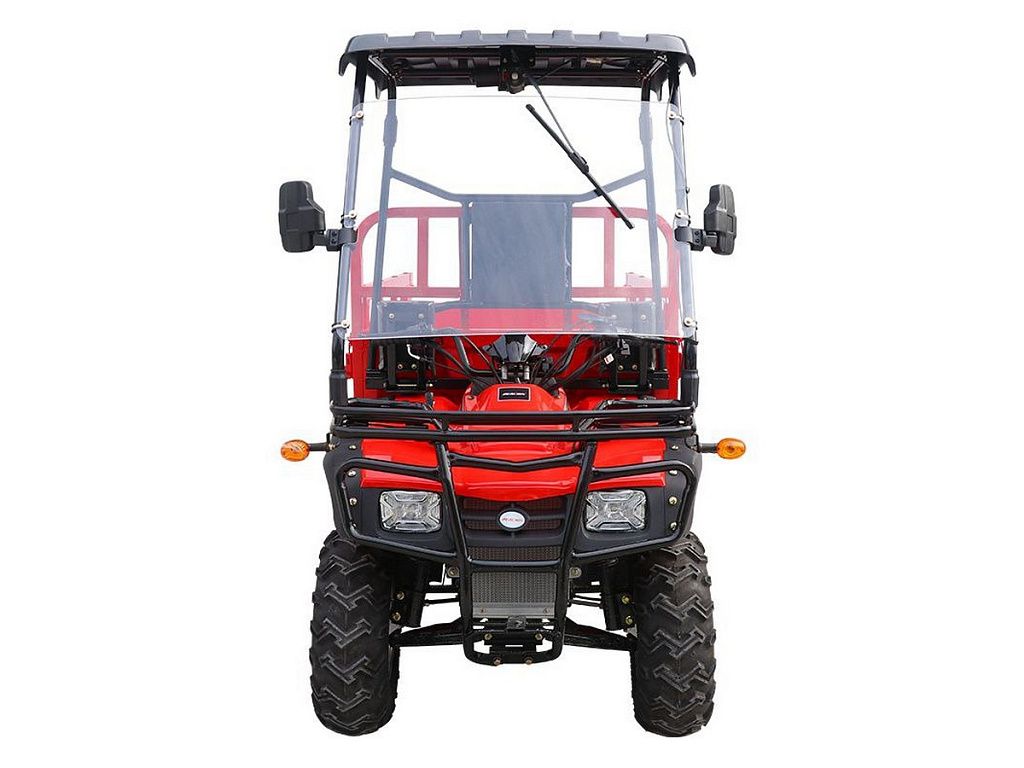

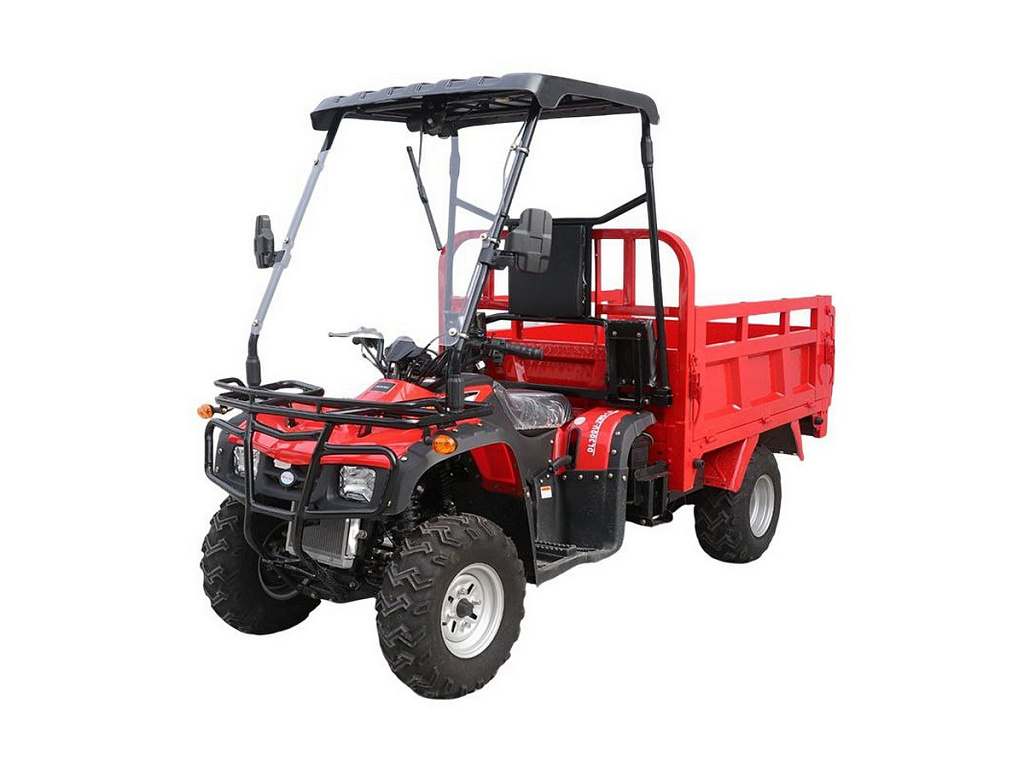

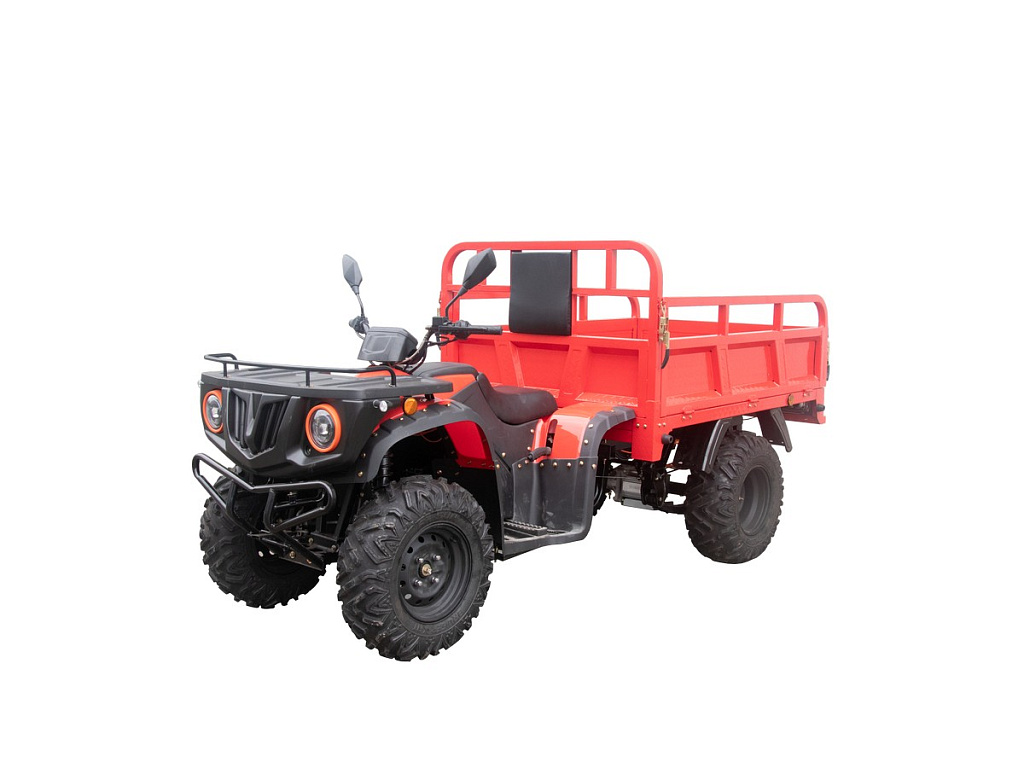

Electric quad bike CARGO ATV

Lead-acid model
Color: orange + black
Battery: lead-acid (SLA) 72V 83AH
Max. torque: 70Nm/6000rpm
Charging: 220V
Starter system: electric start
Brake type: front: drum; rear: drum
Front suspension: independent MacPherson suspension;
Rear suspension: rigid axle with leaf springs;
Drive type: rear wheel drive;
Screen: LCD display
Direction control knob;
Tire type: tubeless;
Tire load index: 6PR;
Front horn + reverse horn;
Battery type: maintenance-free battery;
Climbing angle: ≤20°
Rated load (kg): 500kg;
Full charge time: 5 h
Cruising range (at a speed of 25 km / h, without cargo) 45 km
Trailer size (L * W * H) 1600 * 1200 * 500 mm
Dimensions (L * W * H) 3100 × 1200 × 1400 mm
Ground clearance 170 ± 10 mm
Total weight 500 kg
Model with lithium battery
Color: Red + black
Battery: Lithium battery 76.8 V 150 Ah
Battery heating device: C (at temperatures above -20 ℃)
Max. Torque: 70 N.m / 900 rpm
Charging: 220 V
Starter system: electric start
Drive type: rear wheel drive
Screen: LCD display
Direction control handle;
Tyre type: tubeless;
Tyre load index: 6PR
Front horn + reverse horn;
Full charge time: 4.5–5.5 h
Cruising range (at 25 km/h): 3 h / 100 km (without load)

Nominal load (kg): 400 kg
Maximum load (kg): 800 kg
Dimensions (L*W*H): 3130×1270×1470 mm

We accept payment in Dollars, Yuan and Rubles, in various ways, depending on your Country.
You can choose a payment method by contacting our manager.

Shipping costs are not included in the product price.
You can calculate the shipping cost to your country and city by contacting our manager.
